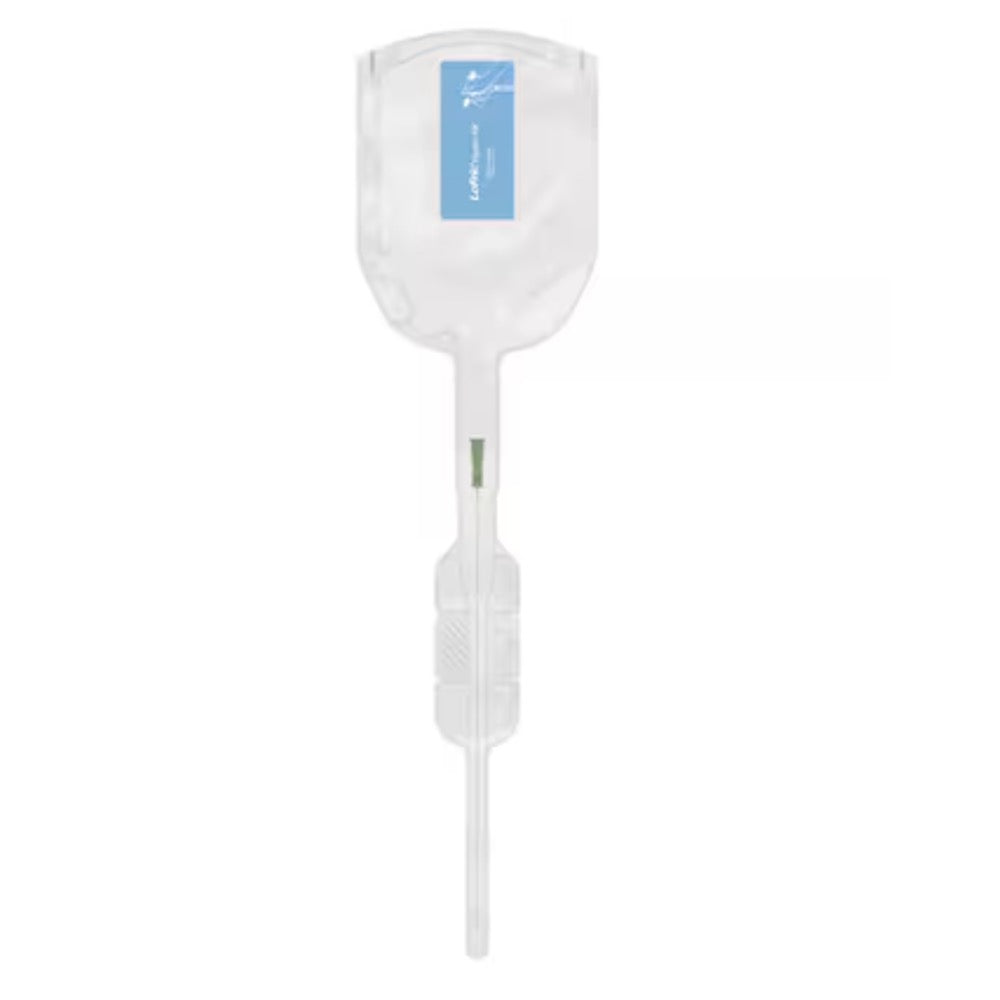

LoFric® Hydro-Kit™ Hydrophilic Intermittent Catheter Kits – Male, Female, Paediatric – Pack of 30

LoFric® Hydro-Kit™ is an all-in-one hydrophilic intermittent catheter kit with an integrated 1000ml urine collection bag and sterile salt solution for activation, designed for convenient catheterisation when direct access to a toilet is difficult or unavailable.

The complete system allows the user to catheterise and collect urine directly into the attached bag, making it particularly useful for:

• Travel

• Wheelchair users

• Bedside catheterisation

• Public toilets

• Situations where transferring to a toilet is difficult

• Catheterisation away from home

LoFric Hydro-Kit incorporates Wellspect's Urotonic™ Surface Technology, an integrated activation solution, textured insertion grip and a collection bag that can be hung or held during use.

The catheter can also be separated from the collection bag if required.

Available options

Paediatric – Nelaton – 20cm

• Paediatric | Nelaton | 20cm | CH08 | Ref: 42108253

• Paediatric | Nelaton | 20cm | CH10 | Ref: 42110253

Female – Nelaton – 20cm

• Female | Nelaton | 20cm | CH08 | Ref: 42308253

• Female | Nelaton | 20cm | CH10 | Ref: 42310253

• Female | Nelaton | 20cm | CH12 | Ref: 42312253

• Female | Nelaton | 20cm | CH14 | Ref: 42314253

• Female | Nelaton | 20cm | CH16 | Ref: 42316253

• Female | Nelaton | 20cm | CH18 | Ref: 42318253

Male – Nelaton – 40cm

• Male | Nelaton | 40cm | CH08 | Ref: 42008253

• Male | Nelaton | 40cm | CH10 | Ref: 42010253

• Male | Nelaton | 40cm | CH12 | Ref: 42012253

• Male | Nelaton | 40cm | CH14 | Ref: 42014253

• Male | Nelaton | 40cm | CH16 | Ref: 42016253

• Male | Nelaton | 40cm | CH18 | Ref: 42018253

Male – Tiemann/Coudé – 40cm

• Male | Tiemann/Coudé | 40cm | CH10 | Ref: 42510253

• Male | Tiemann/Coudé | 40cm | CH12 | Ref: 42512253

• Male | Tiemann/Coudé | 40cm | CH14 | Ref: 42514253

• Male | Tiemann/Coudé | 40cm | CH16 | Ref: 42516253

• Male | Tiemann/Coudé | 40cm | CH18 | Ref: 42518253

All variants are supplied in a pack of 30 complete catheter kits.

Key features

• All-in-one intermittent catheter kit

• LoFric® Hydro-Kit™ by Wellspect

• Hydrophilic intermittent urinary catheter

• Integrated 1000ml urine collection bag

• Printed volume scale on collection bag

• Integrated sterile salt solution

• Instant catheter activation

• No separate water source required

• Urotonic™ Surface Technology

• Textured insertion grip

• Supports a non-touch catheterisation technique

• Smooth catheter eyelets

• Loops for easy opening

• Loop for holding or hanging the collection bag

• Long bag neck for convenient positioning

• Collection bag can be torn open for emptying

• Catheter can be separated from the collection bag

• Available with Nelaton or Tiemann/Coudé tip

• Male, Female and Paediatric configurations

• Available in CH08–CH18 depending on variant

• 20cm and 40cm catheter lengths

• Single use

• Not manufactured with PVC, phthalates or latex

• Pack of 30

What is LoFric Hydro-Kit used for?

LoFric Hydro-Kit is intended for intermittent urinary catheterisation.

During intermittent catheterisation, the catheter is temporarily inserted through the urethra into the bladder to allow urine to drain.

After the bladder has emptied, the catheter is removed and discarded.

Unlike a standard intermittent catheter, Hydro-Kit has its own integrated urine collection bag, so urine does not need to drain directly into a toilet or separate container.

This can make catheterisation easier where toilet access or positioning is difficult.

Integrated 1000ml collection bag

Each LoFric Hydro-Kit incorporates a 1000ml urine collection bag.

The bag has a printed volume scale to provide an approximate indication of the volume collected.

The integrated bag means that a separate urine collection bag does not normally need to be connected.

This can be particularly useful:

• When travelling

• In vehicles

• From a wheelchair

• From a bed

• In toilets without suitable accessibility

• Where direct drainage into a toilet is impractical

Loop for hanging or holding

The collection bag includes a loop that can be used to:

• Hold the bag

• Hang it in a suitable position

The long neck of the Hydro-Kit also allows the bag to be positioned conveniently, including hanging it over the knee during catheterisation.

The bag should always be positioned so urine can drain freely from the bladder.

Emptying the collection bag

After catheterisation, the collection bag can be torn open at the designated area to allow emptying.

Dispose of the used kit appropriately after use.

LoFric Hydro-Kit is intended for single use only.

Catheter can be separated from the bag

The catheter can be separated from the integrated collection bag if necessary.

This provides additional flexibility where the user does not require the collection bag for a particular catheterisation.

Always follow Wellspect's Instructions for Use when separating components.

Instant activation

LoFric Hydro-Kit incorporates its own sterile salt solution.

To activate the catheter, the solution compartment is squeezed according to the manufacturer's instructions.

The solution activates the hydrophilic coating, preparing the catheter for use.

There is no need to:

• Find a separate clean water source

• Carry activation water

• Apply separate lubricating gel

This makes the Hydro-Kit particularly suitable for catheterisation away from home.

Urotonic™ Surface Technology

LoFric catheters incorporate Wellspect's Urotonic™ Surface Technology.

Once activated, the hydrophilic surface binds liquid and creates a smooth catheter surface designed to minimise friction during:

• Insertion

• Catheterisation

• Withdrawal

The coating is designed to remain smooth throughout the catheterisation process.

Textured insertion grip

LoFric Hydro-Kit incorporates a textured insertion grip.

The grip provides improved handling and control while allowing the catheter to be advanced without directly touching the catheter shaft.

This supports a non-touch catheterisation technique.

Always follow the catheterisation method taught by your healthcare professional.

Nelaton tip

Most Hydro-Kit variants use a standard Nelaton tip.

A Nelaton catheter has a:

• Straight shaft

• Soft rounded catheter tip

Nelaton versions are available in:

• Paediatric 20cm

• Female 20cm

• Male 40cm

Tiemann / Coudé tip

The Male Tiemann variants have a slightly curved and tapered catheter tip.

These are sometimes described as Coudé catheters.

Tiemann catheters may be recommended where a healthcare professional considers a curved tip more suitable for the user's anatomy or catheterisation requirements.

Because the curved tip needs to be correctly orientated during insertion, a Tiemann catheter should only be used where the user has been specifically advised and trained to use this type of catheter.

Do not substitute a Tiemann catheter for a Nelaton catheter simply because the CH size is the same.

Male 40cm range

The standard Male Nelaton Hydro-Kit has a 40cm catheter length.

Available sizes:

• CH08

• CH10

• CH12

• CH14

• CH16

• CH18

References begin with 420.

Female 20cm range

The Female Nelaton Hydro-Kit uses a 20cm catheter length.

Available sizes:

• CH08

• CH10

• CH12

• CH14

• CH16

• CH18

References begin with 423.

This is a notably wider size range than LoFric Sense and LoFric Elle.

Paediatric 20cm range

The Paediatric Hydro-Kit uses a 20cm Nelaton catheter and is currently available in:

• CH08

• CH10

References begin with 421.

Male Tiemann 40cm range

The Male Tiemann Hydro-Kit uses a 40cm catheter with curved Tiemann/Coudé tip.

Current sizes are:

• CH10

• CH12

• CH14

• CH16

• CH18

References begin with 425.

Understanding CH sizes

CH stands for Charrière, also commonly referred to as French gauge or Fr.

It indicates the external catheter diameter.

Approximate diameters are:

• CH08 = 2.7mm

• CH10 = 3.3mm

• CH12 = 4.0mm

• CH14 = 4.7mm

• CH16 = 5.3mm

• CH18 = 6.0mm

A higher CH number means a larger catheter diameter.

Always use the exact catheter type and CH size prescribed or recommended by the healthcare professional.

Do not change catheter size or tip configuration without appropriate advice.

How to use LoFric Hydro-Kit

Always follow Wellspect's Instructions for Use and the catheterisation technique provided by your healthcare professional.

In general:

1. Wash and dry your hands.

2. Check that the individual package is intact.

3. Squeeze the sterile salt-solution compartment to activate the catheter.

4. Open the package using the integrated loops.

5. Position or hang the collection bag appropriately.

6. Use the textured insertion grip to handle the catheter.

7. Avoid touching the catheter surface unnecessarily.

8. Insert the catheter gently according to your trained technique.

9. Continue until urine begins to flow.

10. Allow urine to drain into the integrated collection bag.

11. Ensure the bladder empties completely.

12. Slowly withdraw the catheter when drainage has finished.

13. Empty the collection bag as appropriate.

14. Dispose of the complete kit after use.

Do not reuse the catheter.

Smooth drainage eyelets

LoFric Hydro-Kit has smooth catheter eyelets near the tip.

When the catheter enters the bladder, urine passes through these openings and into the catheter before draining into the collection bag.

The catheter should be inserted sufficiently for the drainage eyelets to be positioned inside the bladder.

Single use

Each LoFric Hydro-Kit is intended for one catheterisation only.

After use:

• Do not wash the catheter

• Do not attempt to reactivate it

• Do not reuse the catheter or collection bag

• Dispose of the complete used kit appropriately

Use a new kit for each catheterisation.

Materials

LoFric Hydro-Kit is not manufactured with:

• PVC

• Phthalates

• Latex

Storage

Store LoFric Hydro-Kit:

• In its original packaging

• In a dry place

• At room temperature

Do not use a catheter if:

• The packaging is damaged

• The package has previously been opened

• The catheter appears damaged

• The expiry date has passed

Important information

• For intermittent urinary catheterisation

• All-in-one catheter and urine collection system

• 1000ml integrated collection bag

• Integrated sterile salt solution

• Instant activation

• Hydrophilic catheter

• Urotonic™ Surface Technology

• Nelaton and Tiemann/Coudé options

• Male, Female and Paediatric variants

• Available from CH08 to CH18 depending on configuration

• Male and Tiemann: 40cm

• Female and Paediatric: 20cm

• Textured insertion grip

• Supports non-touch handling

• Smooth drainage eyelets

• Single-use device

• Pack of 30

• Use only the catheter size and tip prescribed or recommended for you

• Tiemann/Coudé catheters should only be used following appropriate training

• Do not reuse

• Do not force the catheter if significant resistance is encountered

• Seek professional advice if catheterisation becomes unusually difficult or painful

• Seek medical advice for persistent bleeding, inability to catheterise, fever or other concerning urinary symptoms

• Always follow Wellspect's Instructions for Use

Product details

• Product: LoFric® Hydro-Kit™

• Manufacturer: Wellspect HealthCare

• Product type: Hydrophilic intermittent catheter kit

• Integrated collection bag: Yes

• Collection bag capacity: 1000ml

• Activation: Integrated sterile salt solution

• Surface: Hydrophilic

• Surface technology: Urotonic™

• Tip options: Nelaton and Tiemann/Coudé

• Lengths: 20cm and 40cm

• Sizes: CH08–CH18 depending on variant

• Insertion grip: Yes

• Non-touch handling: Yes

• Catheter detachable from bag: Yes

• Collection bag emptying: Tear-open facility

• Single use: Yes

• PVC: Not manufactured with PVC

• Phthalates: Not manufactured with phthalates

• Latex: Not manufactured with latex

• Pack size: 30 catheter kits

• NHS Drug Tariff: Listed

Order codes

Paediatric | Nelaton | 20cm

• 42108253 – CH08

• 42110253 – CH10

Female | Nelaton | 20cm

• 42308253 – CH08

• 42310253 – CH10

• 42312253 – CH12

• 42314253 – CH14

• 42316253 – CH16

• 42318253 – CH18

Male | Nelaton | 40cm

• 42008253 – CH08

• 42010253 – CH10

• 42012253 – CH12

• 42014253 – CH14

• 42016253 – CH16

• 42018253 – CH18

Male | Tiemann/Coudé | 40cm

• 42510253 – CH10

• 42512253 – CH12

• 42514253 – CH14

• 42516253 – CH16

• 42518253 – CH18

LoFric® Hydro-Kit™ provides an all-in-one solution for intermittent catheterisation, combining Wellspect's hydrophilic LoFric catheter with an integrated activation solution and 1000ml urine collection bag.

It is particularly useful where direct drainage into a toilet is difficult or inconvenient and is available in Male, Female, Paediatric and Tiemann/Coudé configurations.

Always choose the exact catheter length, CH size and tip type prescribed or recommended by your healthcare professional.
